Low Profile Belt Conveyors

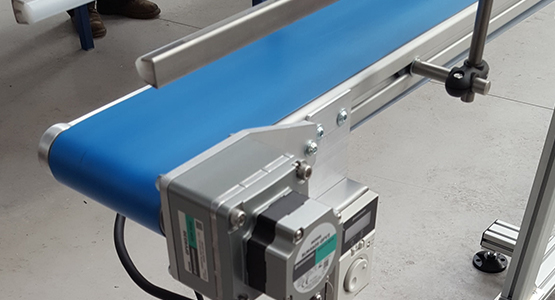

COB 40

COB-40

The COB-40 is a robust cost effective belt conveyor that is manufactured from Cobalt’s custom made aluminium side profile that is 40mm deep. It is a low profile belt conveyor that enables the smallest of products to be conveyed. Both sides have an 8mm slot that enables fixings to be attached on the side. There is also the option of three phase motors or 24vdc to deliver a range of variable speeds.

COB-40 Drawing

COB-40 Specifications

Standard Belt Widths Standard Belt Lengths Type of Belts Drive Drum Height Adj Stands Underslung Drive Centre Drive Geared Motor Drive Belt Speed Belt Load Side Guides Variable Speed Sensors PLC Interface Knife Edge

32mm
72mm
112mm
152mm
172mm
192mm
232mm
272mm
312mm  352mm

From 500mm to 6m PVC, PU, Grip, Silicone Others Available – talk to our Sales Office YES YES YES YES YES Between 1.5m and 60m/min 15kg/m
Others Available
Speak to Sales Team
YES YES YES YES YES

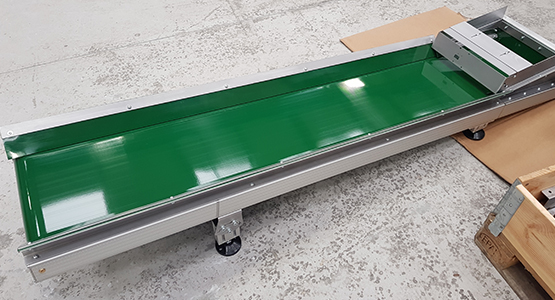

COB 80

COB-80

The COB-80 is a robust cost effective belt conveyor that is manufactured from Cobalt’s custom made aluminium side profile that is 80mm deep. The COB-80 can be customised to a range of widths and lengths to enable larger, heavier products to be transported. The COB-80 can be supplied with variable speed control panels; basic and standard.

COB-80 Drawing

COB-80 Specifications

Standard Belt Widths Standard Belt Lengths Type of Belts Drive Drum Height Adj Stands Underslung Drive Centre Drive Geared Motor Drive Belt Speed Belt Load Side Guides Variable Speed Sensors PLC Interface Knife Edge
330mm
380mm
430mm
480mm
530mm
580mm
630mm
680mm
730mm
780mm
From 1m to 10m PVC, PU, Grip, Silicone YES YES YES YES YES Between 4m and 30m/min 15kg/m YES YES YES YES CALL SALES TEAM
